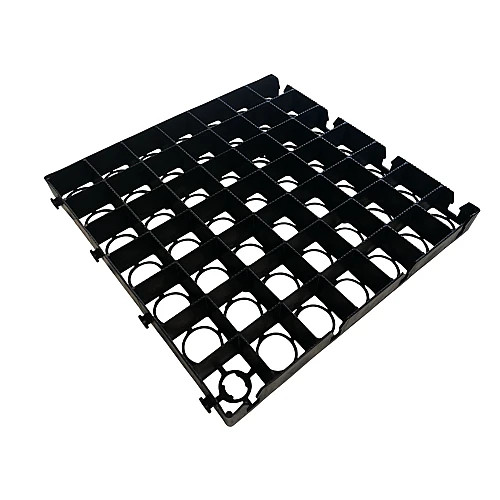

CellPave™ EP50 Economy Grass & Gravel Grid

CellPave™ EP50 is a lightweight, economy cellular paving grid designed for sustainable ground reinforcement where permeability, natural appearance, and cost-efficiency are priorities. Manufactured in the UK from 100% recycled, UV-stabilised mixed polypropylene/TPE, EP50 provides a durable, eco-friendly solution for grass or gravel surfaces. Perfect for estates, farms, hotels, and landscaped areas, it offers reliable ground stabilisation while maintaining a natural look.

The highly open cell structure allows unrestricted grass root growth and excellent water infiltration, supporting SuDS compliance and natural drainage. Independently tested and certified by Lloyd’s British, EP50 can withstand up to 400 tonnes/m² when infilled with angular gravel, making it suitable for domestic, commercial, and light industrial applications. Its anti-migration lattice and soil retention ribs prevent rutting, soil displacement, and aggregate loss, ensuring long-term surface integrity even under repeated vehicle traffic or on slopes.

With its interlocking V-Force push-fit system, CellPave EP50 installs quickly and securely, achieving up to 100m² per hour. This economy yet high-performance solution combines lightweight handling, fast installation, and low maintenance for projects including driveways, overspill car parks, pedestrian routes, golf buggy paths, and landscaped access ways. EP50 delivers strength, sustainability, and natural aesthetics in one versatile system.

Features & Benefits

• Grass & Gravel Reinforcement – Maintains healthy grass or gravel surfaces while protecting against rutting and compaction.

• SuDS Compliant – 95% permeability for sustainable drainage and flood control.

• Economy Lightweight Design – Easy to handle, transport, and install.

• Fast Installation – Interlocking V-Force connectors enable rapid installation rates.

• Anti-Migration Structure – Prevents soil and infill movement under traffic or vibration.

• Anti-Slip Surface – Improves safety for vehicles and pedestrians.

• Sustainable Material – Made from 100% recycled and recyclable plastic.

• Weather & UV Resistant – Designed to endure outdoor conditions long-term.

Applications

• Commercial car parks and public areas

• Overspill / overflow grass car parks

• Driveways and residential lawn parking

• Walkways and pedestrian routes

• Disabled access routes

• Golf buggy paths and landscaped access ways

• Hotels, country estates, and visitor attractions

• SuDS source control and sustainable drainage solutions

Sizes, Handling & Installation

• Tile Dimensions: 500mm x 500mm x 50mm

• Coverage: 4 tiles per m²

• Internal Cell Size: 68mm x 68mm

• Cell Wall Thickness: 3.5mm

• Structure: Square cellular (7x7 cell formation)

• Weight: 5.5kg per m²

• Connection: 4 integrated V-Force push-fit locks per side

• Temperature Stability: -50°C to +90°C

• Installation: Lay on a stable, free-draining sub-base. Interlock tiles and infill with gravel or allow grass growth for natural reinforcement.

Delivery Info: Delivered kerbside on a pallet. Ensure flat, level offloading area with access for mechanical handling equipment. Contact the Green-tech team for restricted access sites.
